Features

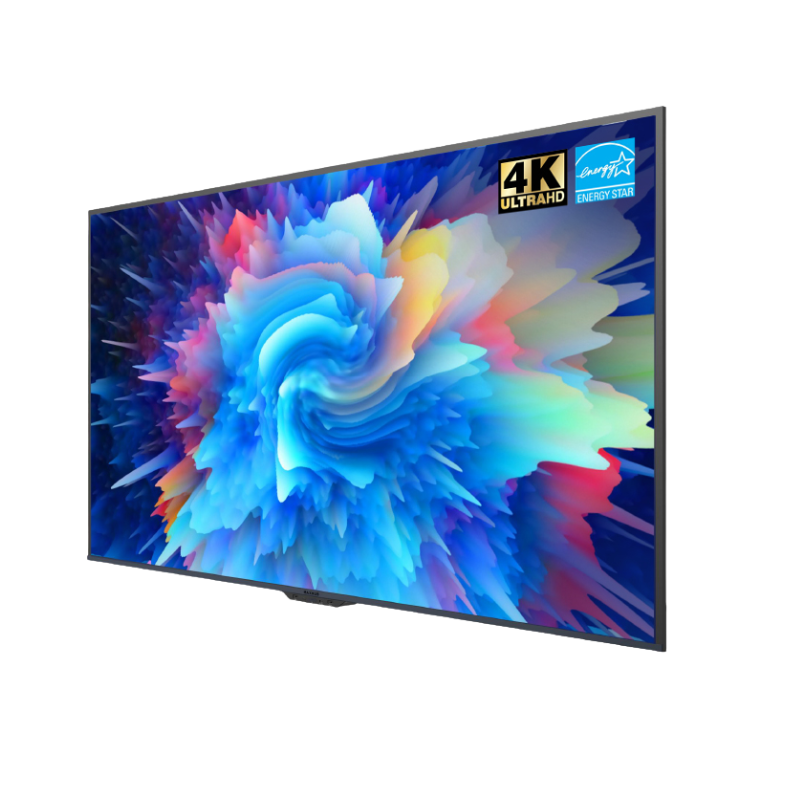

Maxhub-CMD Commercial 65″LCD Display 4K res ND65CMD

A 4K commercial display, equipped with non-glare technology and conformal coating – ideal for meeting rooms and commercial settings.

• 65'' 4K UHD
• 450 nit
• Wireless screen sharing
• Display control through IP or RS232 protocol
• Manage through cloud based MAXHUB PIVOT
• 2x 10W Built-in speakers
• Commercial level design of hardware
• Energy Star 8.0 Certified, ErP Certified

Specifications:

Display

• Screen Size: 65''
• Panel Type: VA
• Backlight: DLED
• Display Area: 1428.48(H) × 803.52(V)mm
• Pixel Pitch: 0.372 × 0.372mm
• Resolution: 3840(H) × 2160(V)
• Contrast Ratio (Typ.): 6000:1
• Aspect Ratio: 16:9
• Refresh Rate: 60Hz
• Brightness (Typ.): 300 cd/m2
• Operation Hours (Day × Hours): 7 × 16H
• Life Time: = 50000 Hours
• Display Color: 1.07B (8bit+FRC)
• Color Gamut (Typ.): NTSC 72%
• Viewing Angle (H × V): 178°
• Response Time: 6.5ms

System

• System: Android 11.0
• CPU:A73 × 4 + A53 × 4
• GPU: Mali G52MP8
• RAM: 4G
• ROM: 32G

Speaker

• Channel: 2
• Power: 2 × 10W

Power

• Power Supply: 100-240V~50/60Hz
• Standby Power Consumption: = 0.5W
• Power Consumption (Typ.): 153W
• Power Consumption (Max.): 257W

Features

• HDMI CEC: Yes
• RS232/IP Protocol to control: Yes
• Built-In Media Player: Yes
• Device Management System: Yes
• Screen Share: Yes
• Channel memory: Yes
• One-key black screen: Yes

Connectivity

• HDMI IN (2.0): 2
• USB 2.0: 1
• USB 3.0: 2 ( Front Panel)
• USB Type-C: 1 ( PD 65W, Front Panel )
• Touch 2.0: 1
• AUDIO IN: 1
• AUDIO OUT: 1
• RS232: 1
• RJ45 IN: 1

Wi-Fi: AP + STA
          Wi-Fi 6 Support
          2.4GHz & 5GHz
          802.11ac/b/g/n/a/ax

Bluetooth: 5.2

Mechanical Specification

• Product Dimension (L×H×D): 1445.7 × 841.3 × 84.9mm
• Package Dimension (L×W×H): 1610 × 185 × 972mm
• Thickness of machine and wall mount: 116 mm (WIB6540B)
• Net Weight: 17kg
• Gross Weight: 27kg
• VESA: 400 × 200mm
• Wall-hanging Screw Spec: M6 × 30mm

Environmental Condition

• Operation Temperature: 0°C - 40°C
• Operation Humidity: 10% - 90%RH
• Storage Temperature: -20°C - 60°C
• Storage Humidity: 10% - 90%RH
• Altitude Below: 5000 meters

Certification

• Certification: Energy Star
