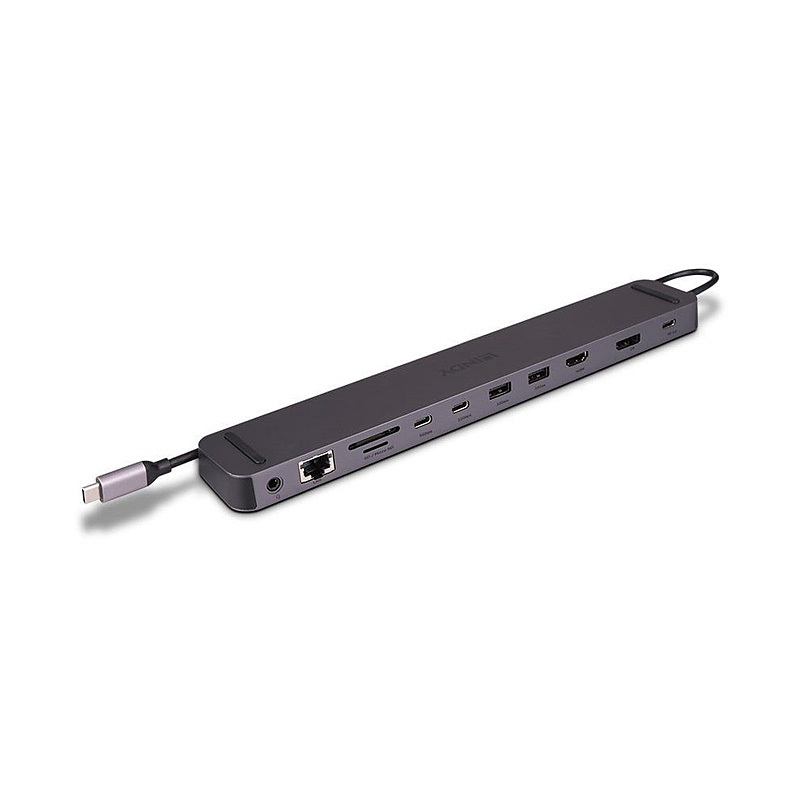

Lindy DST-Mini Docking Station

Features:

• Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable
• Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)
• Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x Type A, 1 x Type C)
• USB Power Delivery capable up to 100W
• 2 year warranty

Specifications:

• Interface: USB Type C to 1x HDMI / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio
• Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1, Gigabit LAN, HDMI 2.1, DP 1.4a, Audio (combo)
• Supported Bandwidth: 10 Gbps, 10/100/1000 Mbps
• Maximum Input Resolution: 8K 7680x4320 30Hz
• Maximum Output Resolution:
  • Single Display: 7680x4320 30Hz, 3840x2160 120Hz
  • Dual Displays: 3840x2160 60Hz (each)
• Chipset: VMM6210, VL822, GL3510, GL3224, RTL8153B, ALC4032, VL102
• Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 1.4 & 2.2
• Supported Audio: Sampling rate 192kHz/24bit
• Separate Audio Ports: 1x Audio combo port 3.5mm
• Special Features: DisplayPort Alternate Mode, MST Extended display support for Windows, Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot Execution Environment) and Wake on LAN (WOL), Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

• Inputs: 1x USB Type C (Male)
• Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 2x USB Type C (Female) / 1x SD slot, 1x microSD slot, 1x 3.5mm Audio (Female)
• Power: 1 x USB Type C (Female) PD port

Physical Properties

• Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)
• (Fixed) cable length: 360mm (14.17in)
• Housing Material: Aluminium
• Net Weight: 0.23kg (0.51lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 0% - 85% RH (non-condensing)
• Power Requirements: 15W
• Colour: Anthracite

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)
• Gross Weight: 0.37kg (0.82lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS, CP65
