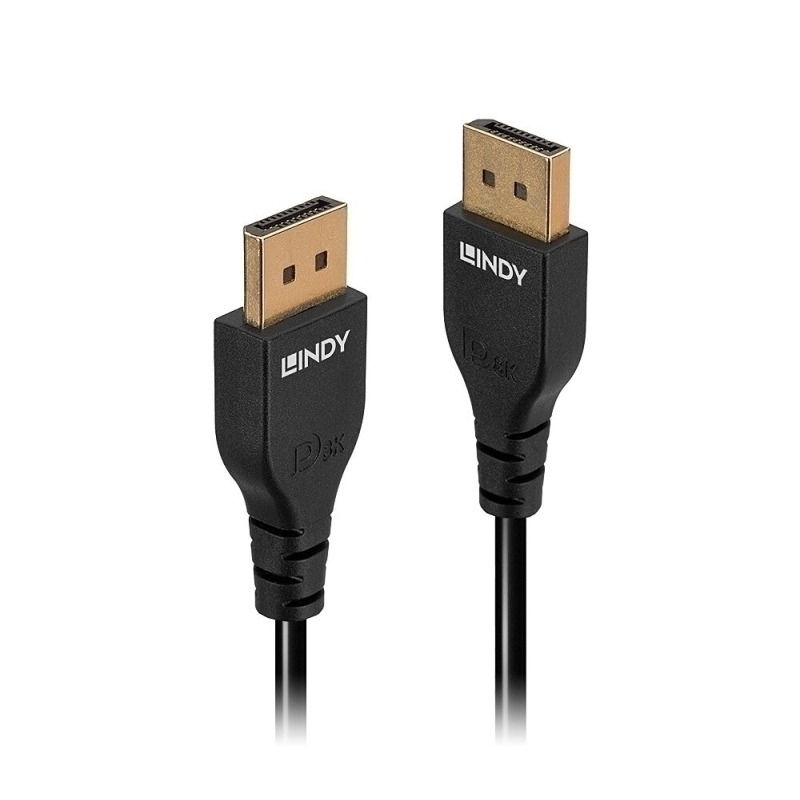

Lindy 36462 DisplayPort Cable 2 M Black Adapter/Cable
Lindy 36462 DisplayPort Cable, 2.0m, black Lindy, s slim DisplayPort cables provide a flexible and high quality DP connection solution using a specially designed compact, low-profile connector and small diameter cable structure. With their compact yet high-performance design, these cables are ideal for situations where space around the source device and display connectors is limited, such as gaming monitors or graphics cards. Triple-shielded 30AWG pure copper conductors provide improved overall performance Gold-plated phosphor bronze pins offer protection against corrosion and fatigue. High-quality, 24-karat gold-plated contacts and connectors ensure optimal signal integrity and maximum connector reliability. With lengths of 0.5, 1, 2 and 3 m, they also offer a versatile solution for collaborative huddle spaces or modern educational facilities in combination with a touch panel or LFD (Large Format Display). Features Professional, slm cable for DisplayPort, with low profile connectors. Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit Rugged ABS housing with 24Karat gold plated connectors and contacts Triple shielded cable, corrosion resistant tinned 30AWG copper conductors Technical Data Connector: DisplayPort male / DisplayPort male Housing material: PVC Connector coating: Gold plated Pin construction: Phosphor bronze Coating of the pin: Gold Standard: DP 1.4 Color: Black Type: Round Sheath diameter: 5.7mm Sheath material: PVC Conductor material: Copper Conductor size: 30AWG Shielding: 85% tinned copper braid Supported bandwidth: 32.4Gbps Maximum resolution: 7680x4320@60Hz 4:2:2 Length: 2 m
| Details |
| Style | Video Cables/Adapters |
| Cable type | Round cable |
| Contact material | Phosphor bronze |
| Data transfer rate | 32.4 Gbit/s |
| Awg wire size | 30 |
| Jacket material | Polyvinyl chloride (PVC) |
| Number of shielding layers | 3 |
| Cable shielding | Copper |
| Maximum refresh rate | 144 Hz |
| Supported video modes | 4320p |
| Supported graphics resolutions | 4096 x 2160,7680 x 4320 |
| Display port version | 1.4 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Maximum resolution | 7680 x 4320 pixels |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 2 m |
