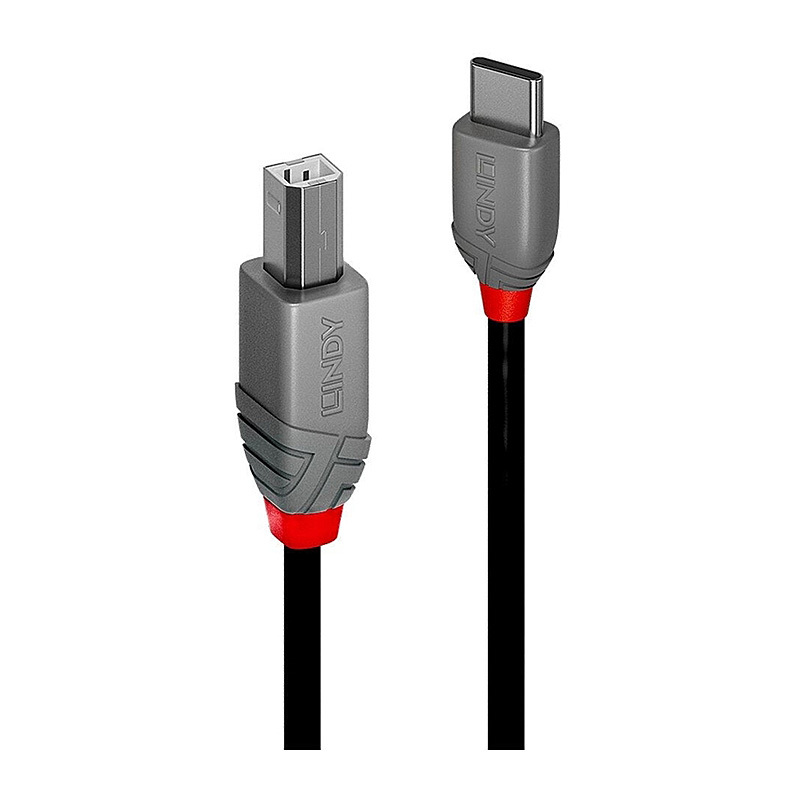

Lindy 1m USB 2.0 Type C to B

Features:

• Professional choice USB 2.0 Type C to B cable for commercial and high-performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold-plated contacts
• Double-shielded cable, corrosion-resistant tinned copper conductors
• 10-year warranty

Specifications:

• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 1-400MHz < 5.8dB
• Minimum Band Radius: 25mm (0.98in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)

Connectors

• Connector A: USB 2.0 Type C Male
• Connector B: USB 2.0 Type B Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction:
  C: High conductivity copper
  B: Brass
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  C: 10.9x28.3x7.2mm (0.43x1.11x0.28in)
  B: 11.8x47x10.2mm (0.46x1.85x0.4in)

Cable Construction

• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.4mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 26AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Magnesium Braid 65%
• Shielding in connector headshell: Copper foil

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, California Proposition 65, UL
