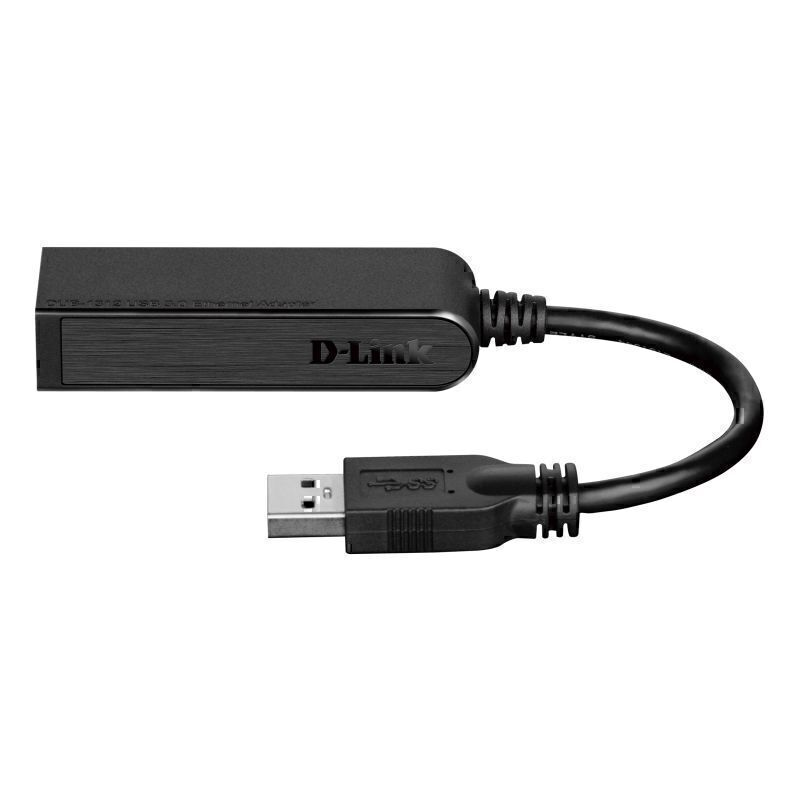

D-Link DUB-1312 USB 3.0 to Gigabit Ethernet Adapter
November 2013 · D-Link · Wired · USB · PC · Mac · Linux · USB to Ethernet · 1 GbpsOverview The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter allows you to instantly add gigabit connectivity to your desktop, notebook, or netbook computer. Just plug the DUB-1312 in to an available USB 3.0 port and you’re ready to connect to your switch, hub, or router with the speed and reliability of a wired gigabit connection. Key Features Fast Ethernet Connectivity The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter plugs into any available USB port on your computer to enable you to connect to an Ethernet network at speeds up to 1 Gbps. High-speed gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device. The adapter eliminates the need to open your computer to install a network card, and it also keeps your computer’s expansion slots free for other uses. Easy to Install and Use The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter connects to your computer’s USB 3.0 port and is ready to run almost as soon as it’s plugged in. There is no need to change any configuration settings on your computer, as the drivers are installed automatically after you insert the included installation CD1. For extra convenience, the adapter’s compact design means you can easily slip the DUB-1312 into your pocket or laptop bag and take it with you. Energy-saving Functionality Power to the DUB-1312 is provided directly by the USB port, eliminating the need for an external AC power adapter. The DUB-1312 not only supports the USB 3.0 standard’s power-saving features, but also includes an energysaving suspend and resume function to minimize power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. This feature is especially useful if you are using a notebook or netbook computer, as it helps conserve battery life, allowing you to keep working for longer without needing to recharge.
- The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter allows you to instantly add gigabit connectivity to your desktop, notebook, or netbook computer.
- Achieve transfer speeds of up to 1 Gbps.
- Status LEDs for connection status and data transfer speed.
- Simply plug in, install the included software and you’re ready to go.
- No additional hardware installation required, leaving expansion slots free for other uses.
Fast Ethernet connectivity
The DUB-1312 USB 3.0 to Gigabit Ethernet adapter plugs into any available USB port on your computer to enable you to connect to an Ethernet network at speeds up to 1 Gbps. High-speed Gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device. The adapter eliminates the need to open your computer to install a network card, and it also keeps your computer's expansion slots free for other uses.
Easy to install and use
The DUB-1312 USB 3.0 to Gigabit Ethernet adapter connects to your computer's USB 3.0 port and is ready to run almost as soon as it's plugged in. There is no need to change any configuration settings on your computer, as the drivers are installed automatically after you insert the included installation CD. For extra convenience, the adapter's compact design means you can easily slip the DUB-1312 into your pocket or laptop bag and take it with you.
Energy-saving functionality
Power to the DUB-1312 is provided directly by the USB port, eliminating the need for an external AC power adapter. The DUB-1312 not only supports the USB 3.0 standard's power-saving features, but also includes an energy saving suspend and resume function to minimize power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. This feature is especially useful if you are using a notebook or netbook computer, as it helps conserve battery life, allowing you to keep working for longer without needing to recharge.
General |
Device type | Network adapter |
Form factor | External |
Interface bus type | SuperSpeed USB 3.0 |
Networking |
Ports | Gigabit Ethernet |
Connectivity technology | Wired |
Cabling type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
Data link protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Data transfer rate | 1 Gbps |
Status indicators | Port transmission speed, link/activity |
Features | USB powered |
Compliant standards | IEEE 802.3, IEEE 802.3u, USB 1.1, USB 2.0, USB 3.0 |
Expansion connectivity |
Interfaces | 1 x 1000Base-T - RJ-45 |
Miscellaneous |
Compliant standards | FCC |
Software system requirements |
Os required | Linux 2.6.14, Microsoft Windows XP SP3, Apple MacOS X 10.6 - 10.8, Microsoft Windows Vista / 7 / 8 |
Dimensions weight |
Width | 7.44 cm |
Depth | 2.1 cm |
Height | 1.6 cm |
Weight | 46.4 g |
Environmental parameters |
Min operating temperature | 0 °C |
Max operating temperature | 40 °C |
Humidity range operating | 10 - 90% (non-condensing) |
