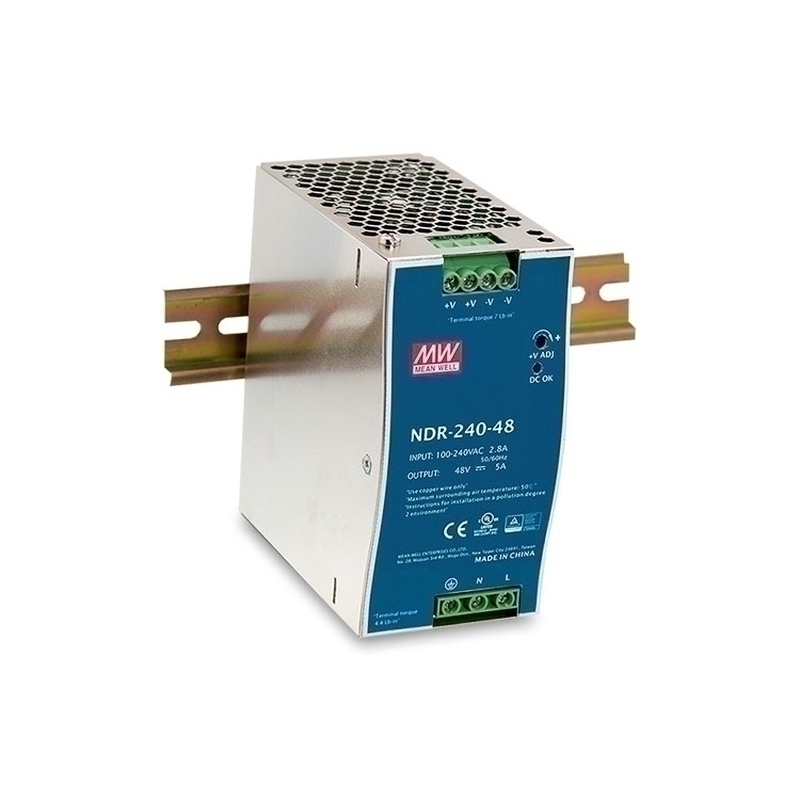

D-Link DIS-N240-48 240W Universal AC Input Power Supply
Ndr-24o is one economical slim 240w din rail power supply series, adapt to be installed on ts-35/7.5 or ts-35/15 mounting rails. the body is designed 63mm in width, which allows space saving inside the cabinets. the entire series adopts the full range ac input from 9ovac to 264vac and conforms to en61000-3-2, the norm the european union regulates for harmonic current. ndr-24o is designed with metal housing that enhances the unit's power dissipation. with working efficiency up to 90%, the entire series can operate at the ambient temperature between -20deg;c and 70deg;c under air convection. it is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. the complete protection functions and relevant certificates for industrial control apparatus (ul508, tuv en60950-1, and etc.) make ndr-24o a very competitive power supply solution for industrial applications.
- 264 V AC input frequency: 47.
- 70 °C Storage temperature (T-T): -40.
- 85 °C Operating relative humidity (H-H): 20.
- 95% Storage relative humidity (H-H): 10.
- 95% Weight & dimensions Width: 63 mm Depth: 113.
| General |
| Device type | Power supply - DIN rail mountable |
| Power device |
| Input voltage range | AC 90 - 264 V |
| Output voltage | DC 48 - 55 V |
| Power capacity | 240 Watt |
| Environmental parameters |
| Min operating temperature | -20 °C |
| Max operating temperature | 70 °C |
| Compatibility information |
| Designed for | D-Link DIS 100G-5PSW |
