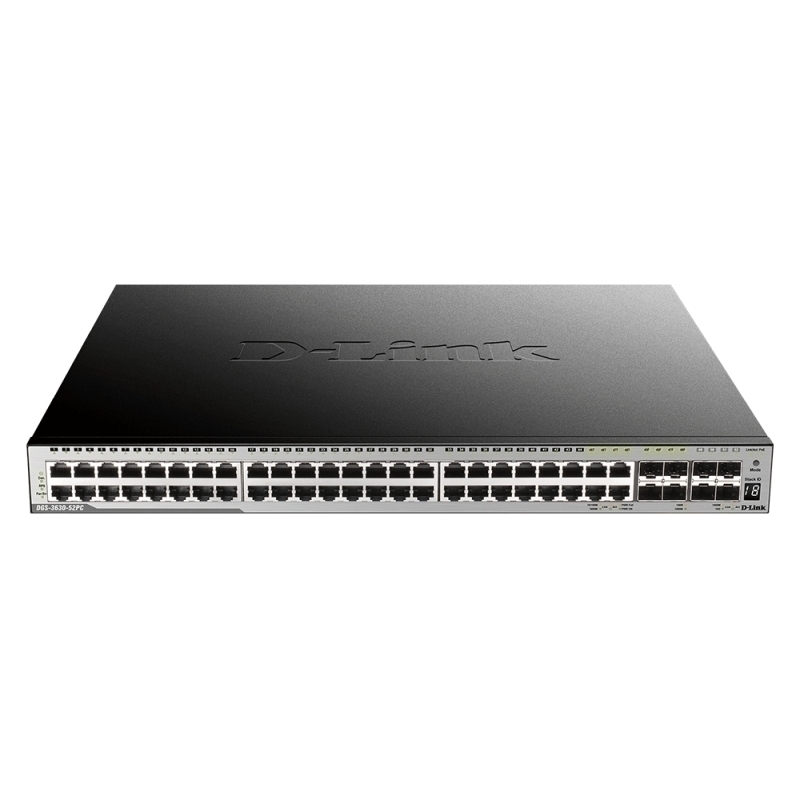

D-Link DGS-3630-52PC 52-Port Layer 3 Managed Gigabit PoE Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DGS-3630-52PC

Free shipping

$11,261.60

Qty:

D-Link DGS-3630-52PC 52-Port Layer 3 Managed Gigabit PoE Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

The DGS-3630 series Layer 3 stackable managed switches are designed for small to mediumsized businesses, small to medium-sized enterprises, large enterprises, and Internet service providers. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet, SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 series can act as core, distribution, or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 series suitable for a variety of applications. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Switch and link failover In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630 series also supports advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink. Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology. Meanwhile, FlexLink offers link failover on designated switch ports, providing link redundancy without STP or LBD.

Features 48 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Features 48 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Built-in power supply to ensure all components are being supplied with accurate voltage

Management features
Quality of service qo s support	Y
Multicast support	Y
Web based management	Y
Switch layer	L3
Switch type	Managed
Ports interfaces
Usb 2 0 ports quantity	1
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Console port	RJ-45/Mini-USB
Sfp module slots quantity	4
Basic switching rj 45 ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching rj 45 ethernet ports quantity	48
Networking
Flow control support	Y
10 g support	Y
Igmp snooping	Y
Port mirroring	Y
Link aggregation	Y
Vlan support	Y
Ip routing	Y
Routing entries	16000
Ethernet ring protection switching erps	Y
Head of line hol blocking	Y
Full duplex	Y
Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at
Virtual lan features
Virtual lan features	Private VLAN,Voice VLAN,Protocol-based VLAN,MAC address-based VLAN,Port-based VLAN
Data transmission
Jumbo frames	12000
Multicast listener discovery mld snooping	MLD v1, MLD v2
Jumbo frames support	Y
Number of static routes	512
Static route	Y
Number of vla ns	4000
Store and forward	Y
Forwarding rate	130.95 Mpps
Switching capacity	176 Gbit/s
Mac address table	68000 entries
Optical fiber
Fiber optic connector	SFP+
Security
Access control list acl	Y
Ssh ssl support	Y
Security algorithms	802.1x RADIUS,SNMP,SNMPv3,SSH,SSL/TLS
Bpdu filtering protection	Y
Loop protection	Y
Ip mac port binding	Y
Dhcp features	DHCP server,DHCP client
Design
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC
Safety	cUL, CB, CE, CCC, BSMI
Number of fans	4 fan(s)
Colour of product	Black, Grey
Performance
Auto negotiation	Y
Built in processor	Y
Virtual stacking units	32
Physical stacking units	9
Stackable	Y
Power
Redundant power supply rps support	Y
Ac input frequency	50 - 60 Hz
Ac input voltage	100 - 240 V
Power over ethernet po e
Total power over ethernet po e budget	370 W
Power over ethernet po e power per port	30 W
Power over ethernet plus po e ports quantity	48
Power over ethernet po e	Y
Technical details
Shipping inner case height	57.2 cm
Shipping inner case width	36.2 cm
Shipping inner case length	57.9 cm
Shipping inner case net weight	13.7 kg
Quantity per shipping inner case	2 pc(s)
Pallet gross weight air	355.5 kg
Number of cartons per pallet air	18 pc(s)
Quantity per pallet air	36 pc(s)
Pallet length	110 cm
Pallet width	120 cm
Pallet height air	185.1 cm
Pallet gross weight sea	355.5 kg
Number of cartons per pallet sea	18 pc(s)
Quantity per pallet sea	36 pc(s)
Pallet height sea	185.1 cm
Shipping inner case weight	18.7 kg
Operational conditions
Storage relative humidity h h	5 - 95%
Operating relative humidity h h	10 - 95%
Storage temperature t t	-40 - 70 °C
Operating temperature t t	-5 - 50 °C
Weight dimensions
Height	44 mm
Depth	380 mm
Width	441 mm
Packaging data
Package weight	8.6 kg
Package height	170 mm
Package depth	560 mm
Package width	538 mm
