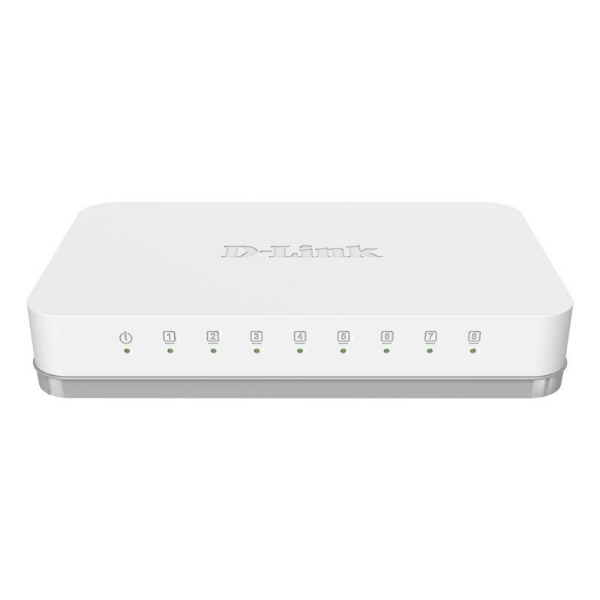

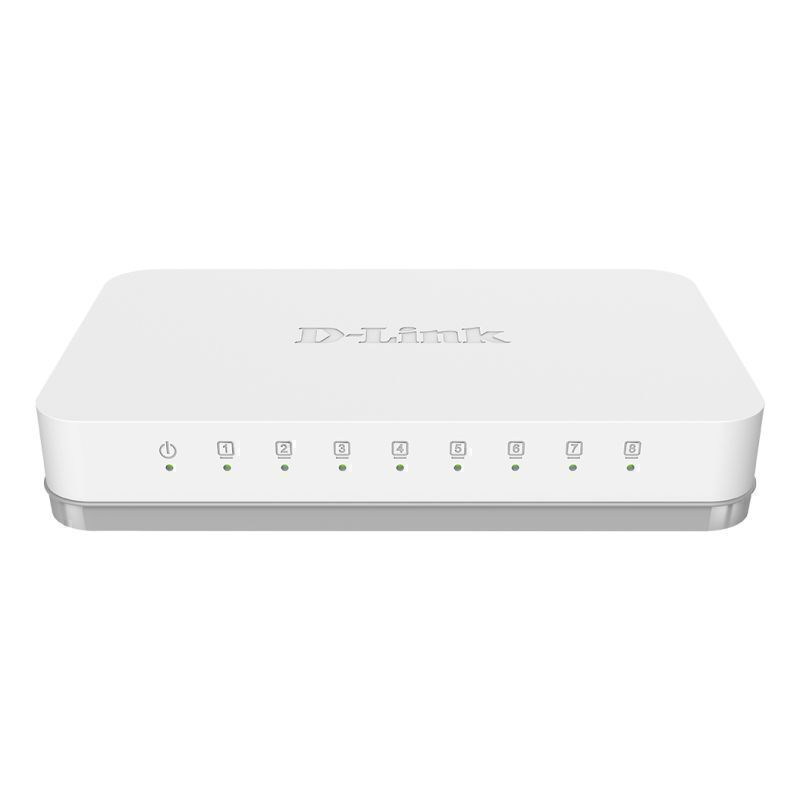

D-Link DGS-1008A 8 Port Desktop Gigabit Switch
D-Link · Gigabit Ethernet · Switches · Unmanaged · 8 Ethernet ports · 8 countThe D-Link 8-port gigabit switch is part of D-Link series of SOHO devices that make use of D-Link's Green technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter, minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly. The DGS-1008A 8-port gigabit switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down. The 8-port gigabit switch was designed with the environment in mind, and is compliant with Energy Star level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive. The DGS-1008A offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight gigabit ports for easy expansion of your network and a quick way to upgrade your network to gigabit connectivity.
- Key Features
- Non-blocking Architecture
- 8 x Gigabit Ports
- IEEE 803.2az Energy-Efficient Ethernet (EEE)
- Compact Housing
| Dimensions weight |
| Width | 17.1 cm |
| Depth | 10 cm |
| Height | 3.1 cm |
| Environmental parameters |
| Min operating temperature | 0 °C |
| Max operating temperature | 40 °C |
| Humidity range operating | 10 - 90% (non-condensing) |
| Min storage temperature | -10 °C |
| Max storage temperature | 70 °C |
| Humidity range storage | 5 - 90% (non-condensing) |
| Expansion connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 |
| General |
| Device type | Switch - 8 ports - unmanaged |
| Enclosure type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Mac address table size | 8K entries |
| Jumbo frame support | 9216 bytes |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, Jumbo Frames support, Green Ethernet |
| Compliant standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status indicators | Port transmission speed, power, link/activity |
| Miscellaneous |
| Mtbf | 891,309 hours |
| Compliant standards | Plug and Play, RoHS |
| Power |
| Power device | External power adapter |
| Energy star certified | Yes |
