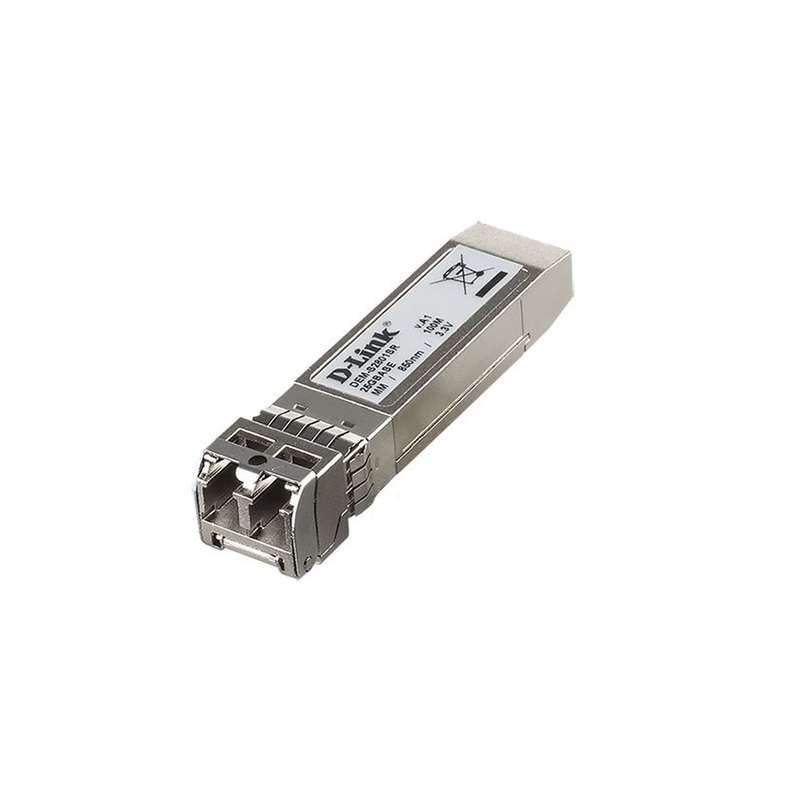

D-Link DEM S2801SR - SFP28 transceiver module - 25 Gigabit LAN - 25GBase-SR - LC multi-mode - up to 100 m - 850 nm

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DEM-S2801SR

Free shipping

$394.95

Qty:

D-Link DEM S2801SR - SFP28 transceiver module - 25 Gigabit LAN - 25GBase-SR - LC multi-mode - up to 100 m - 850 nm

Gigabit Ethernet · SFP

D-Link's 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors.

General
Device type	SFP28 transceiver module
Form factor	Plug-in module
Networking
Connectivity technology	Wired
Cabling type	25GBase-SR
Data link protocol	25 Gigabit LAN
Data transfer rate	25 Gbps
Optical wave length	850 nm
Max transfer distance	100 m
Features	Hot swappable
Compliant standards	IEEE 802.3by
Expansion connectivity
Interfaces	1 x Ethernet 25GBase-SR - LC multi-mode female x 2
Miscellaneous
Compliant standards	VCCI, FCC, RoHS, EN 60825-1, LVD, MSA, EN 60825-2, OM4, OM3
Dimensions weight
Width	5.73 cm
Depth	1.37 cm
Height	0.85 cm
Weight	25 g
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	70 °C
Humidity range operating	5 - 95%

Overview
