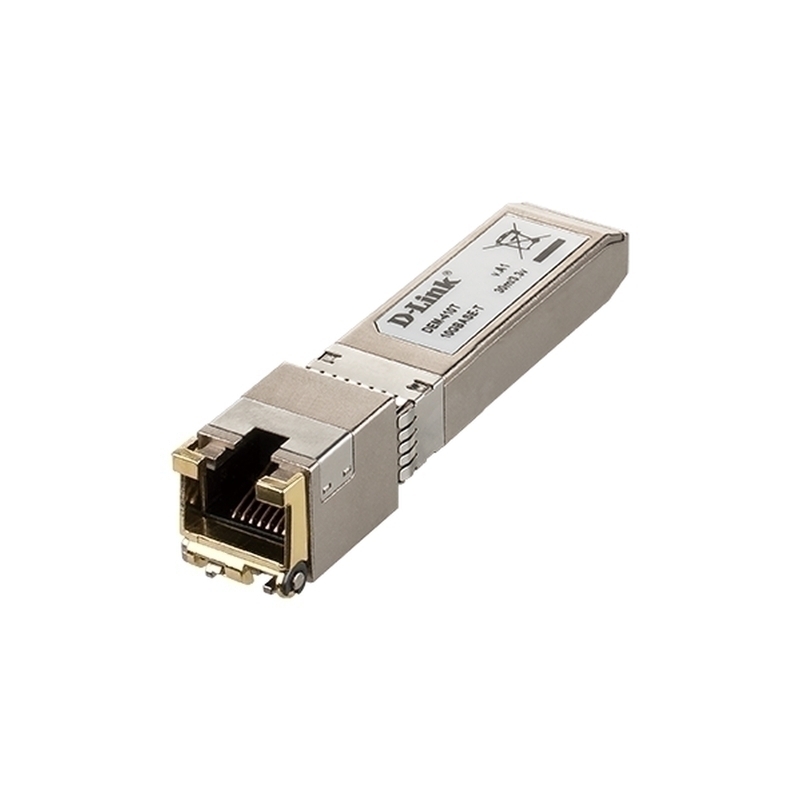

D-Link Dem-410t SFP+ 10GBase Copper Transceiver
Gigabit Ethernet · Fibre-optic · SFPThe 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a up to 30m). These power savings can add-up in ToR mid-row and end-of-row switch connectivity. Its the alternative compared with standard SFP+ SR/LR fibre optics which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
- Type: Cabling
- Speed: 10 Gbps
- Connections: SFP
| General |
| Device type | SFP+ transceiver module |
| Form factor | Plug-in module |
| Networking |
| Connectivity technology | Wired |
| Cabling type | 10GBase-T |
| Data link protocol | 10 GigE |
| Data transfer rate | 10 Gbps |
| Max transfer distance | 30 m |
| Compliant standards | IEEE 802.3ab, IEEE 802.3an |
| Expansion connectivity |
| Interfaces | 1 x Ethernet 10GBase-T - RJ-45 female |
| Miscellaneous |
| Mtbf | 217,186 hours |
| Compliant standards | VCCI, FCC, RoHS, LVD, MSA SFF-8431, MSA SFF-8432 |
| Power |
| Power consumption operational | 0.5 Watt |
| Dimensions weight |
| Width | 1.37 cm |
| Depth | 6.8 cm |
| Height | 0.85 cm |
| Weight | 20 g |
| Environmental parameters |
| Min operating temperature | 0 °C |
| Max operating temperature | 65 °C |
| Humidity range operating | 5 - 95% |
