| General |

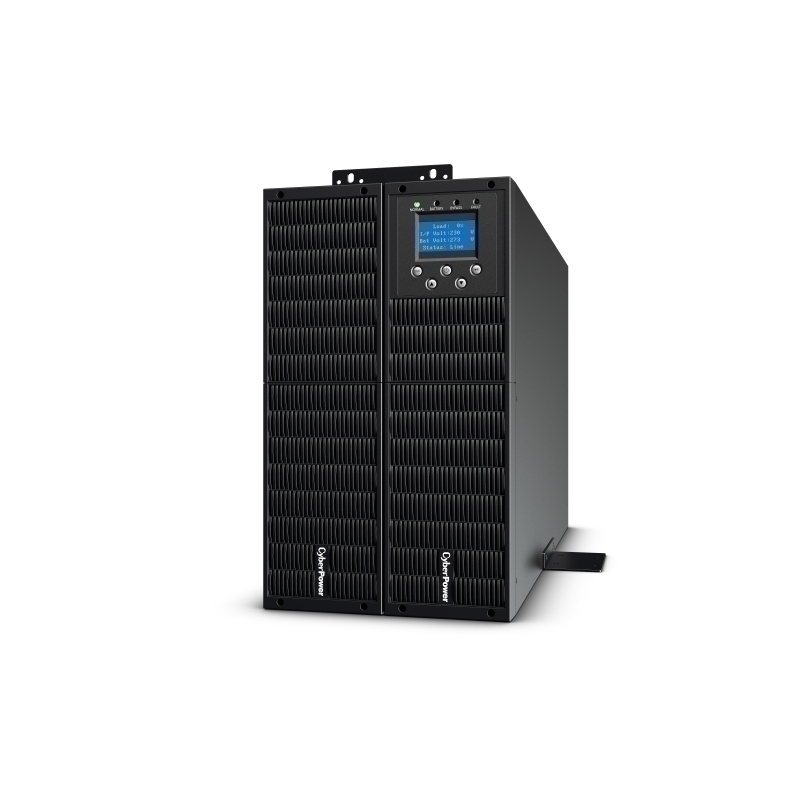

| Device type | UPS - rack-mountable / external |
| Height rack units | 6U |
| Colour | Black |
| Power device |
| Ups technology | On-line |
| Input voltage | AC 230 V |
| Input voltage range | AC 110 - 276 V |
| Input voltage range adjustable | AC 110 - 276 V |
| Frequency provided | 50/60 Hz ± 0.1% |
| Input wiring | 1-phase |
| Frequency required | 50/60 Hz |
| Input connectors | 1 x terminal block |
| Power output connectors details | 1 x terminal block |
| Output voltage | AC 208/220/230/240 V 50/60 Hz |
| Power capacity | 9000 Watt / 10000 VA |
| Output waveform | Sinewave |
| Surge suppression | Yes |
| Surge energy rating | 445 Joules |
| Circuit protection | Fuse, circuit breaker, electronic current limit |
| Efficiency | 96% |
| Power factor pf | 0.99 |
| Total harmonic distortion thd | 5 % |
| Battery |
| Technology | Lead Acid |
| Voltage provided | 12 V |
| Capacity | 9 Ah |
| Run time up to | 4 min at full load 11 min at half load |
| Recharge time | 7 hours |
| Transfer time | 0 ms |
| Features | Sealed |
| Networking |
| Remote management interface | RS-232, USB |
| Expansion connectivity |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off) |
| Miscellaneous |
| Cables included | USB cable - external |
| Features | Audible alarm, LCD display, overheat protection, built-in maintenance bypass, LED indicators, overcharge protection, overload protection, Smart Battery Management (SMB), Enhanced Battery Management (EBM), Eco-Mode, generator compatible |
| Compliant standards | RoHS |
| Software system requirements |
| Software included | PowerPanel Business Edition |
| Manufacturer warranty |
| Service support | Limited warranty - 2 years Limited warranty - batteries - 2 years |
| Environmental parameters |
| Min operating temperature | 0 °C |
| Max operating temperature | 40 °C |
| Humidity range operating | 0 - 90% (non-condensing) |
| Sound emission | 60 dBA |
| Dimensions weight |
| Width | 43.8 cm |
| Depth | 136 cm |
| Height | 13.05 cm |
| Weight | 86 kg |
| Dimensions weight shipping |
| Shipping width | 57.5 cm |
| Shipping depth | 89 cm |
| Shipping weight | 118.24 kg |
