CyberPower MBP20HVAU3 Hotswap Maintenance Bypass Switch

Manufacturer: Cyberpower

Availability: In stock

Manufacturer part number: MBP20HVAU3

Free shipping

$373.80

Qty:

CyberPower MBP20HVAU3 Hotswap Maintenance Bypass Switch

Switches

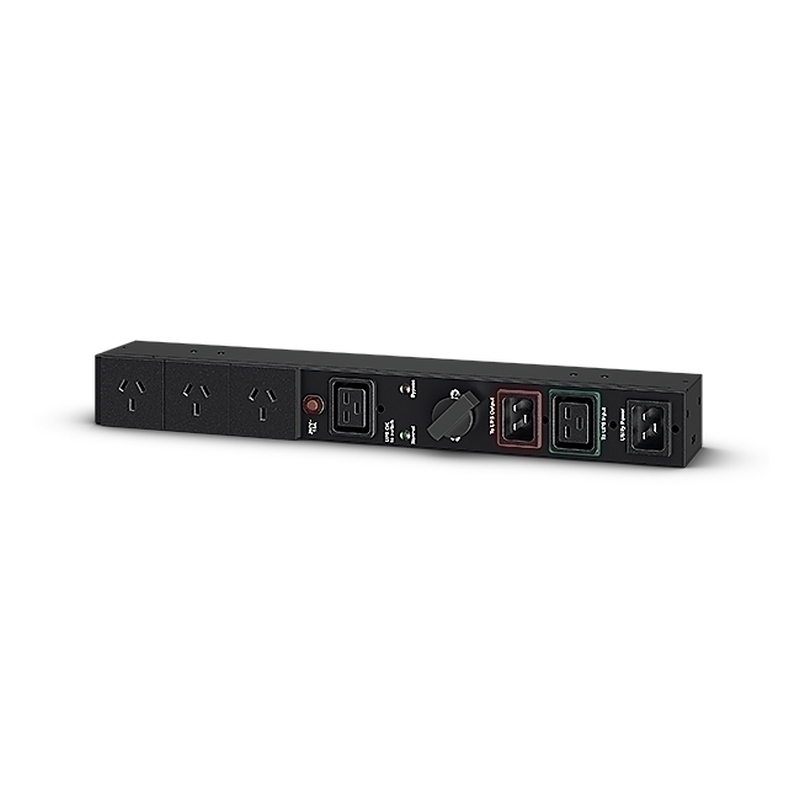

CyberPower MBP20HVAU3 Maintenance Bypass PDU (MBP) can be attached to UPS for maintenance purpose. It can seamlessly switch power from UPS to utility supply during UPS maintenance. The MBP has extra outlets to connect to more devices. Besides stacking installation, the MBP can be attached to the rear of UPS without taking up any vertical space in the rack for more flexible configuration.

LED Status Indicator
Metal housing
Retaining Clip Design
Multiple Mounting Options
Rack Ears Included

General
Device type	Power distribution unit - rack-mountable
Height rack units	1U
Colour	Black
Power device
Input voltage	AC 200-240 V
Input connectors	2 x power IEC 60320 C20
Power output connectors details	3 x power AS/NZS 3112 2 x power IEC 60320 C19
Max electric current	16 A
Battery
Transfer time	4 ms
Miscellaneous
Cables included	4 x power cable
Rack mounting kit	Included
Features	Built-in maintenance bypass, vertical orientation, horizontal orientation
Compliant standards	C-Tick, RoHS
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	0 - 90% (non-condensing)
Dimensions weight
Width	24.5 cm
Depth	50 cm
Height	6.6 cm
Weight	3.5 kg
