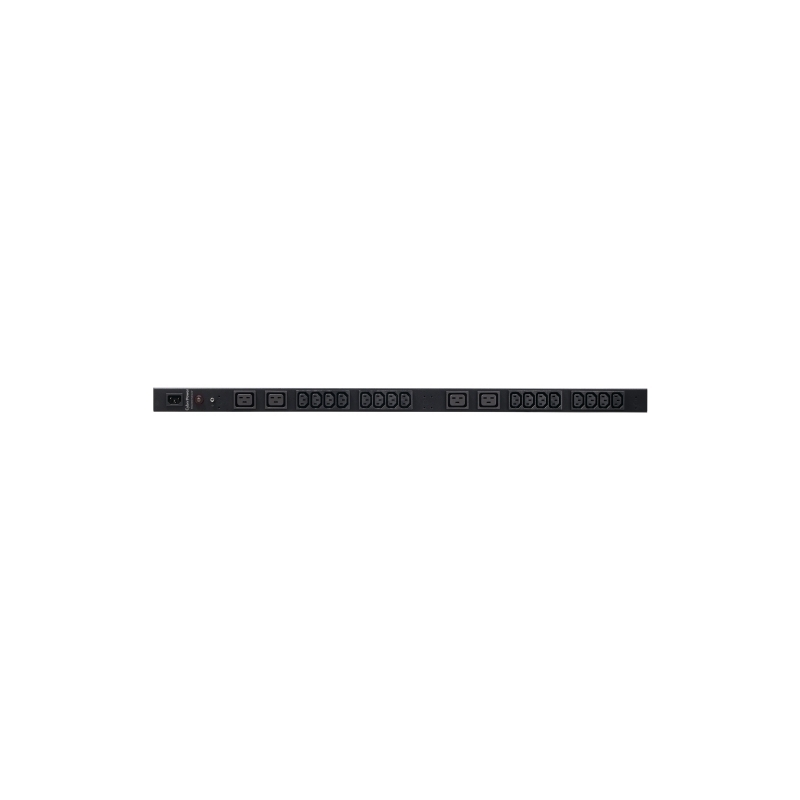

CyberPower Basic PDU10BVHVIEC20F 20-Outlets PDU - 4 x IEC
RackmountIt distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications this unit has a rugged industrial-grade metal housing and a 10-foot AC power cord. It supports vertical horizontal and wall mount installation includes a cord retention tray and is ETL/RoHS certified.
- Inputs: 1x IEC-320 C14
- Outputs: 16x IEC-320 C13, 4x IEC-320 C19
- Nominal Output Voltage: 200 ~ 230V
- Nominal Input Voltage: 200 ~ 230V
- Max Current: 10A (Derated to 8A)
- Inputs: 1x IEC-320 C14
- Outputs: 16x IEC-320 C13, 4x IEC-320 C19
- Nominal Output Voltage: 200 ~ 230V
- Nominal Input Voltage: 200 ~ 230V
- Max Current: 10A (Derated to 8A)
- Input Frequency: 50/60Hz
- Mounting Options: 0U Rack-Mountable
| General |
| Device type | Power distribution unit - rack-mountable |
| Height rack units | 0U |
| Power device |
| Input voltage | AC 208/230 V |
| Frequency required | 50/60 Hz |
| Input connectors | 1 x power IEC 60320 C14 |
| Power output connectors details | 16 x power IEC 60320 C13 4 x power IEC 60320 C19 |
| Output voltage | AC 208/230 V |
| Max electric current | 10 A |
| Circuit protection | Circuit breaker |
| Miscellaneous |
| Cables included | Power cable - integrated - 3 m |
| Rack mounting kit | Included |
| Features | Overload protection, vertical orientation |
| Compliant standards | RoHS, ETL, UL 60950-1 |
| Manufacturer warranty |
| Service support | Limited warranty - 2 years |
| Environmental parameters |
| Min operating temperature | 0 °C |
| Max operating temperature | 40 °C |
| Humidity range operating | 0 - 95% |
| Dimensions weight |
| Width | 4.5 cm |
| Depth | 3.8 cm |
| Height | 91.4 cm |
| Weight | 2 kg |
